Mevea Pro Simulator Platform
Mevea Pro Crane and Pro Mobile Simulator Platforms
Professional simulator system with 3 DOF motion platform and multidisplay or mixed reality solution. Easy to adapt to various machine trainings. Change the machine and controls in a minute. Feel the realistic machine motions simulated by multibody dynamics physics engine and enjoy the state-of-the-art visualisation through large displays or mixed reality headset.
Perfect solution for operator training when all the senses are needed.
Mevea Pro Crane Images

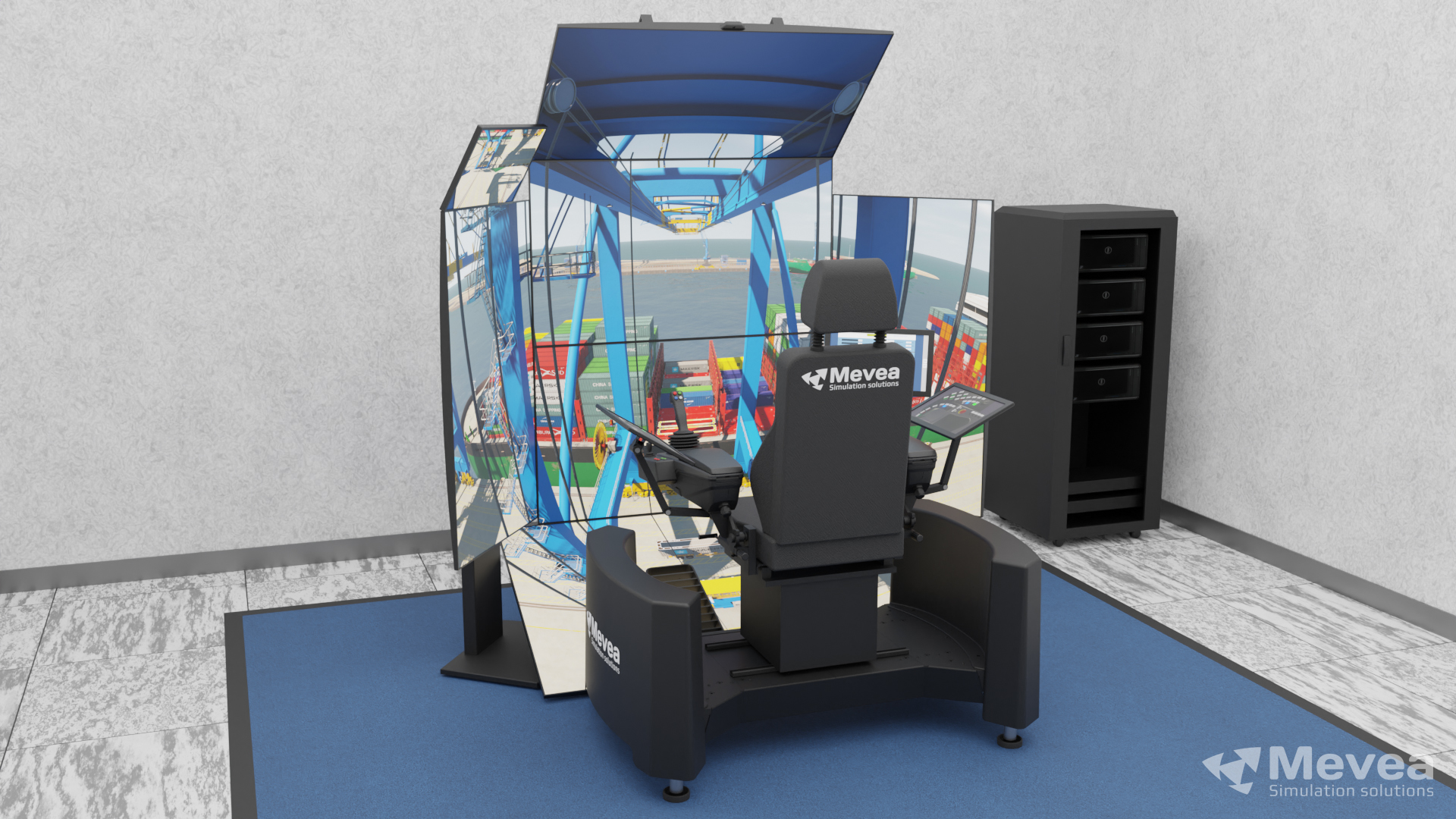

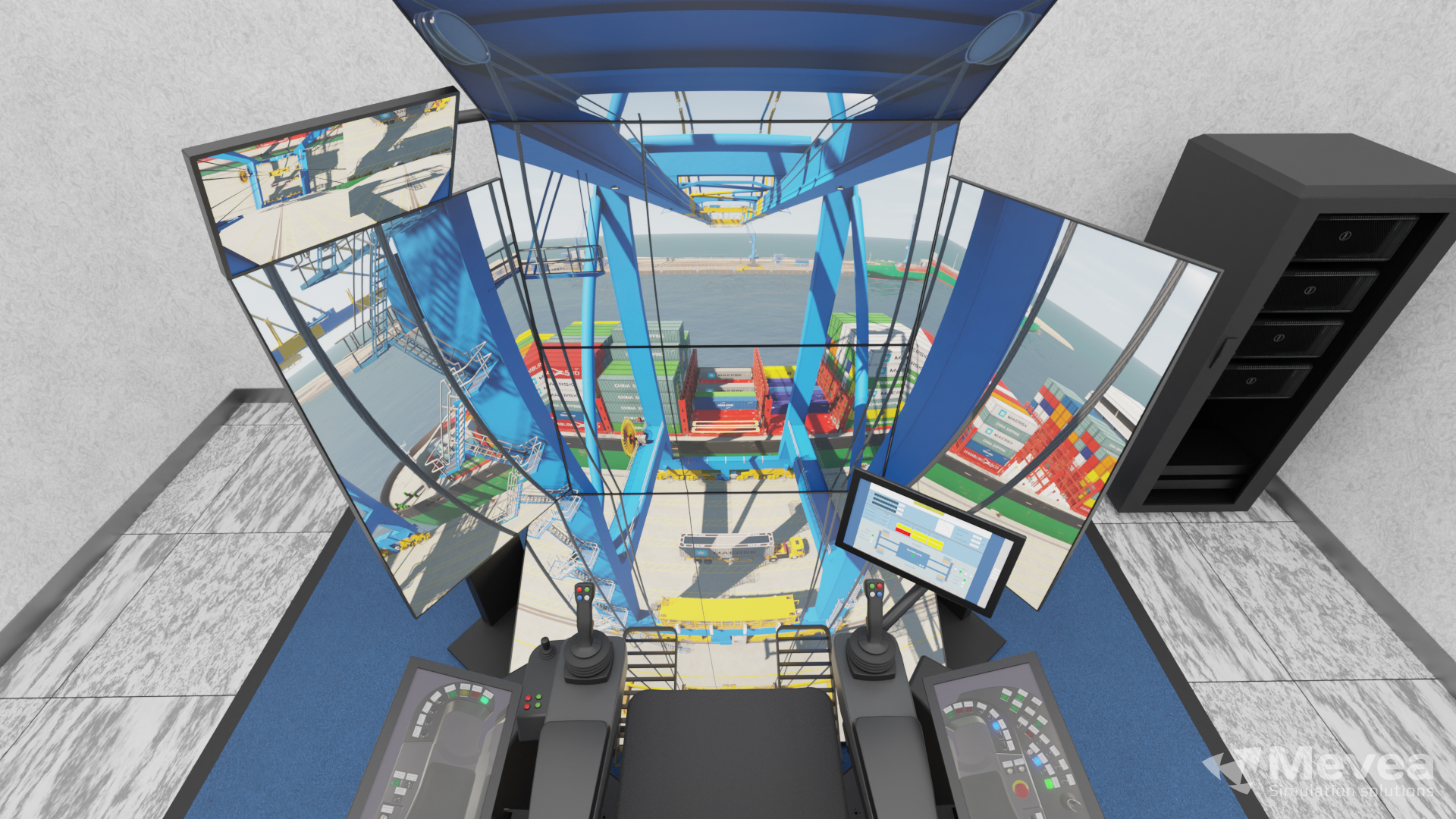

Mevea Pro Crane, 6 displays
Mevea Pro Crane, 6 displays

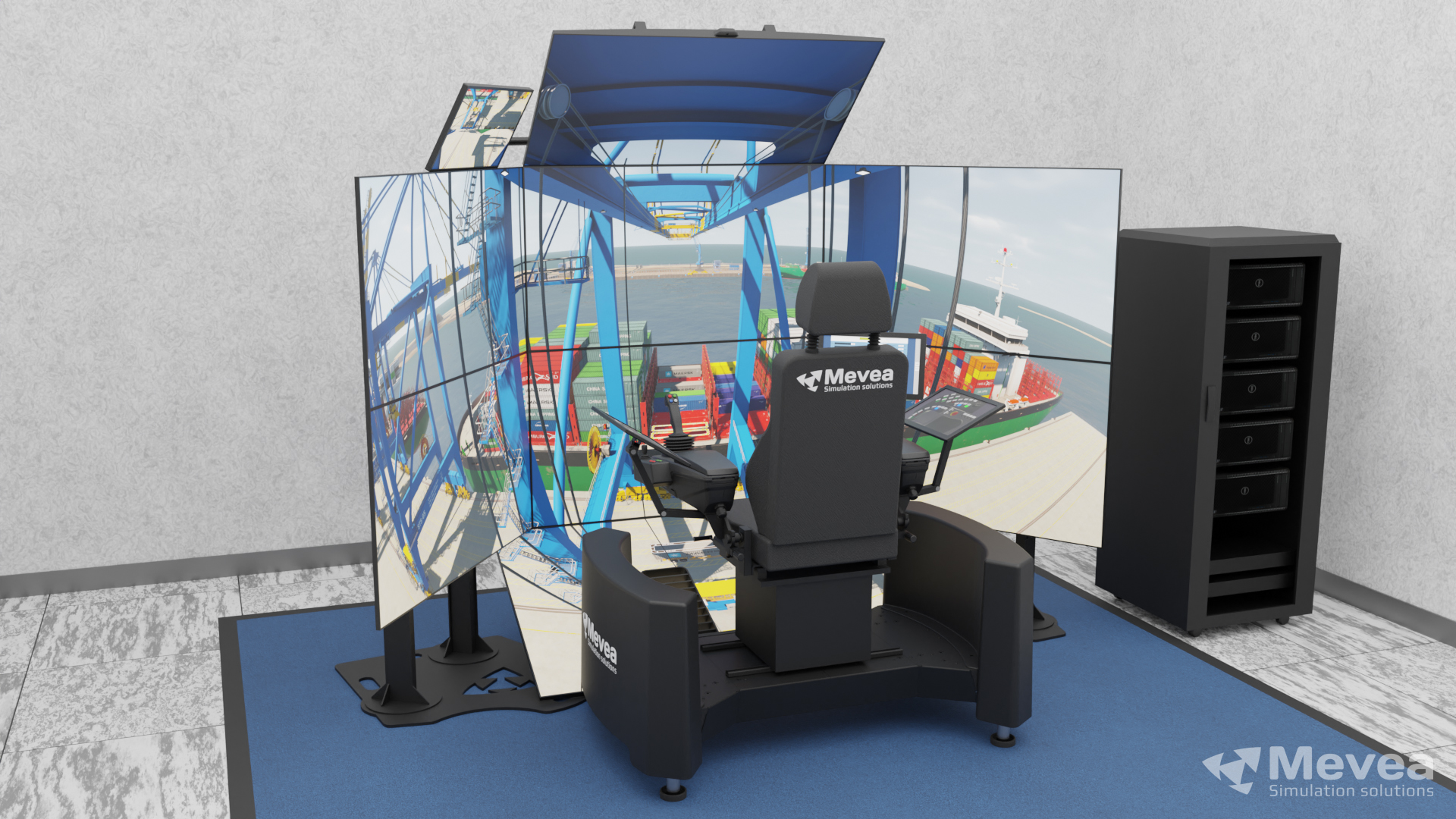

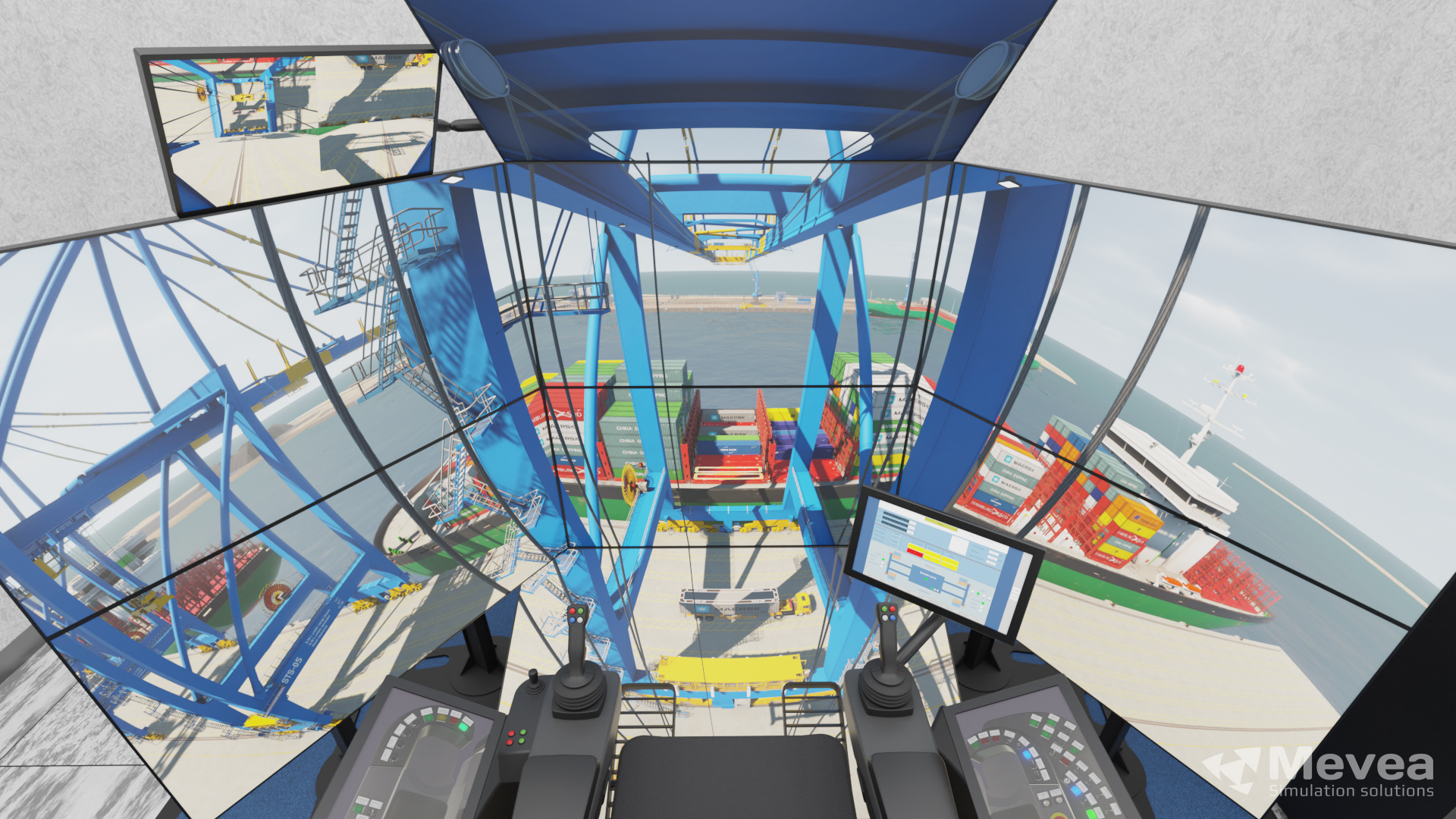

Mevea Pro Crane, 8 displays
Mevea Pro Crane, 8 displays
One Mevea Platform to Simulate Several Equipment
In the case of changing from crane training to mobile equipment training the joystick setup can be removed completely from the platform and rapidly swapped with steering wheel and pedals.
Mevea Pro Simulator platforms can have 3-10 displays. The same platform can simulate both crane and mobile equipment.
Mevea Pro Mobile Images

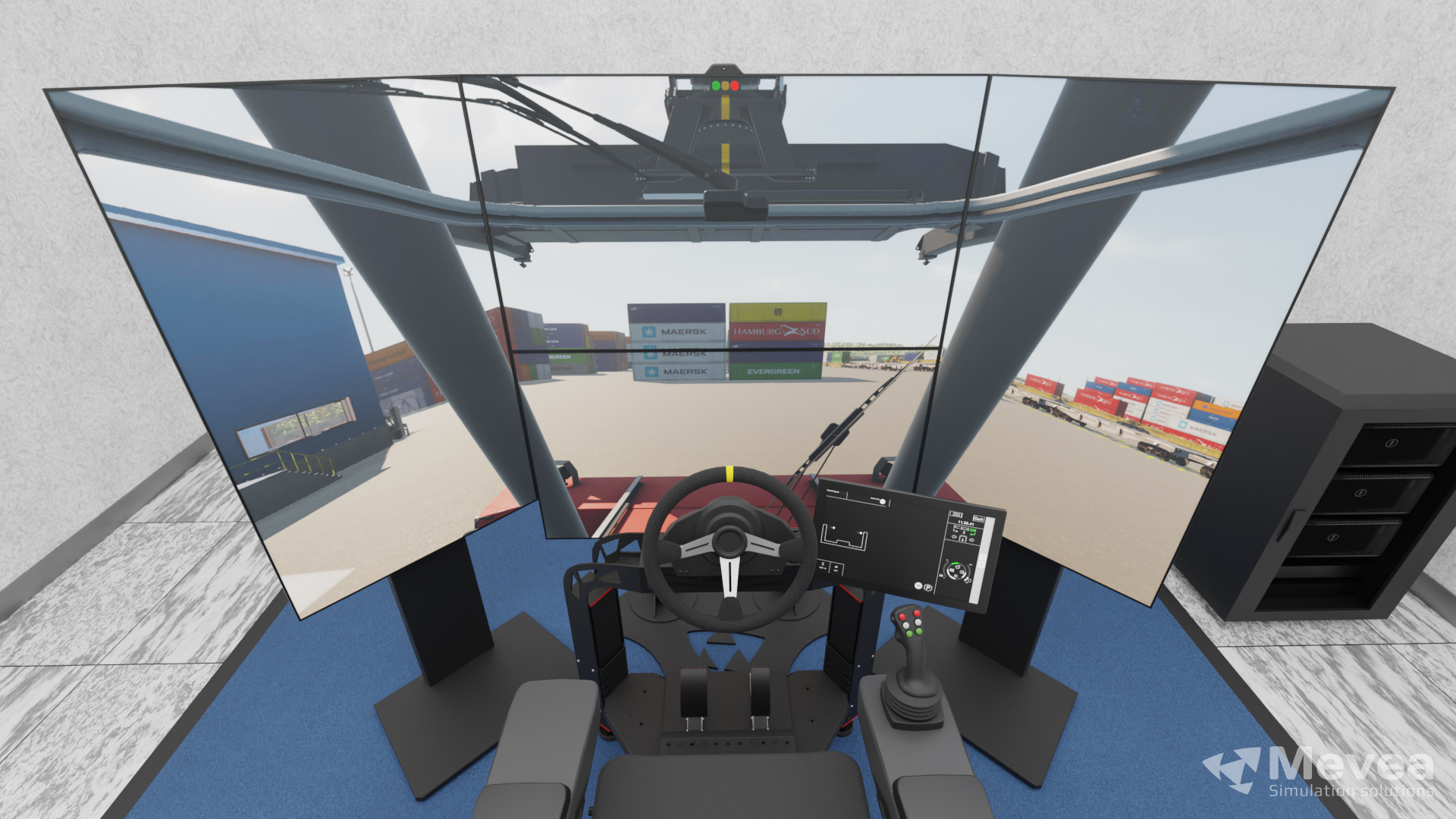

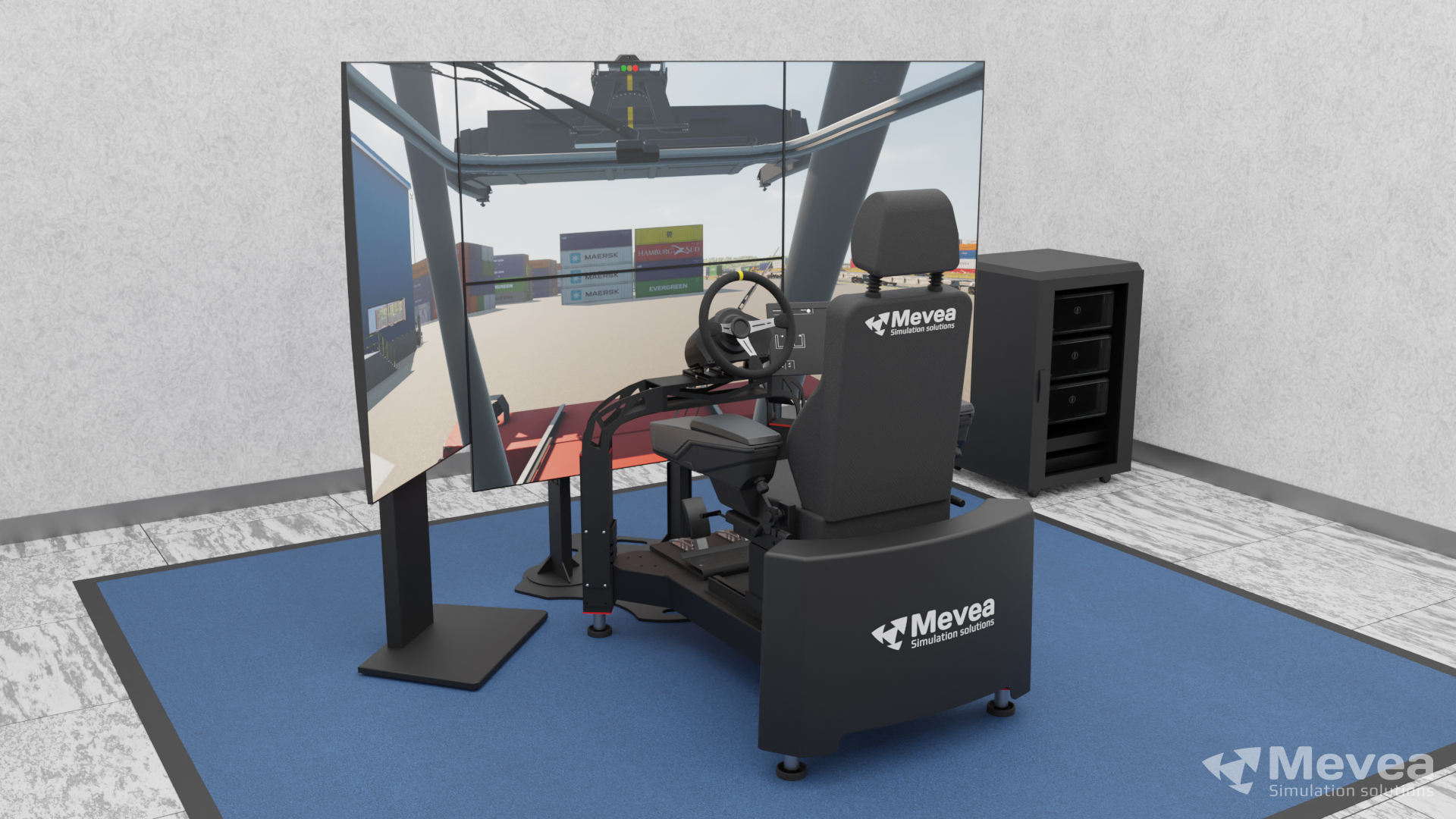

Mevea Pro Mobile, 4 displays
Mevea Pro Mobile, 4 displays

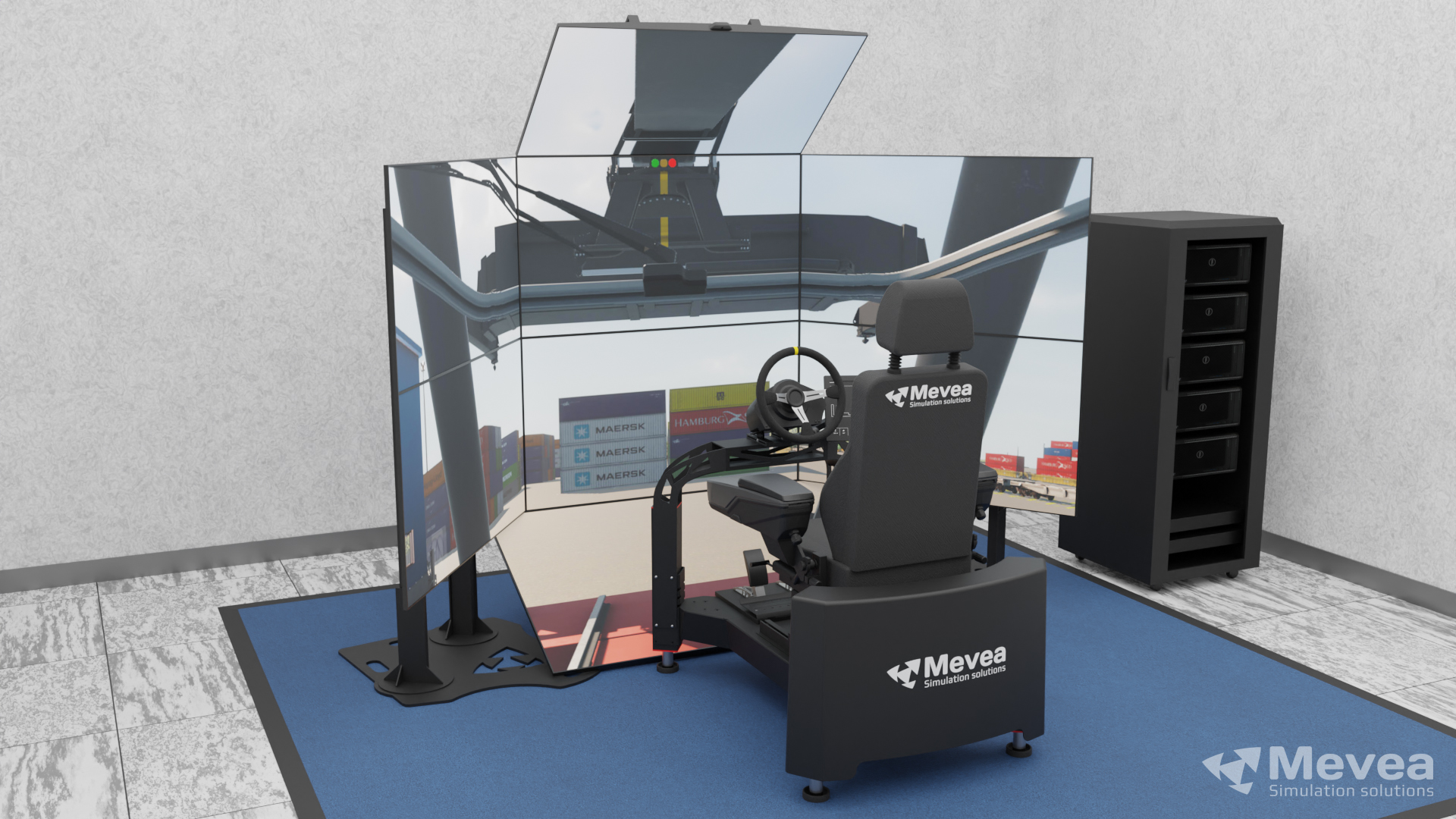

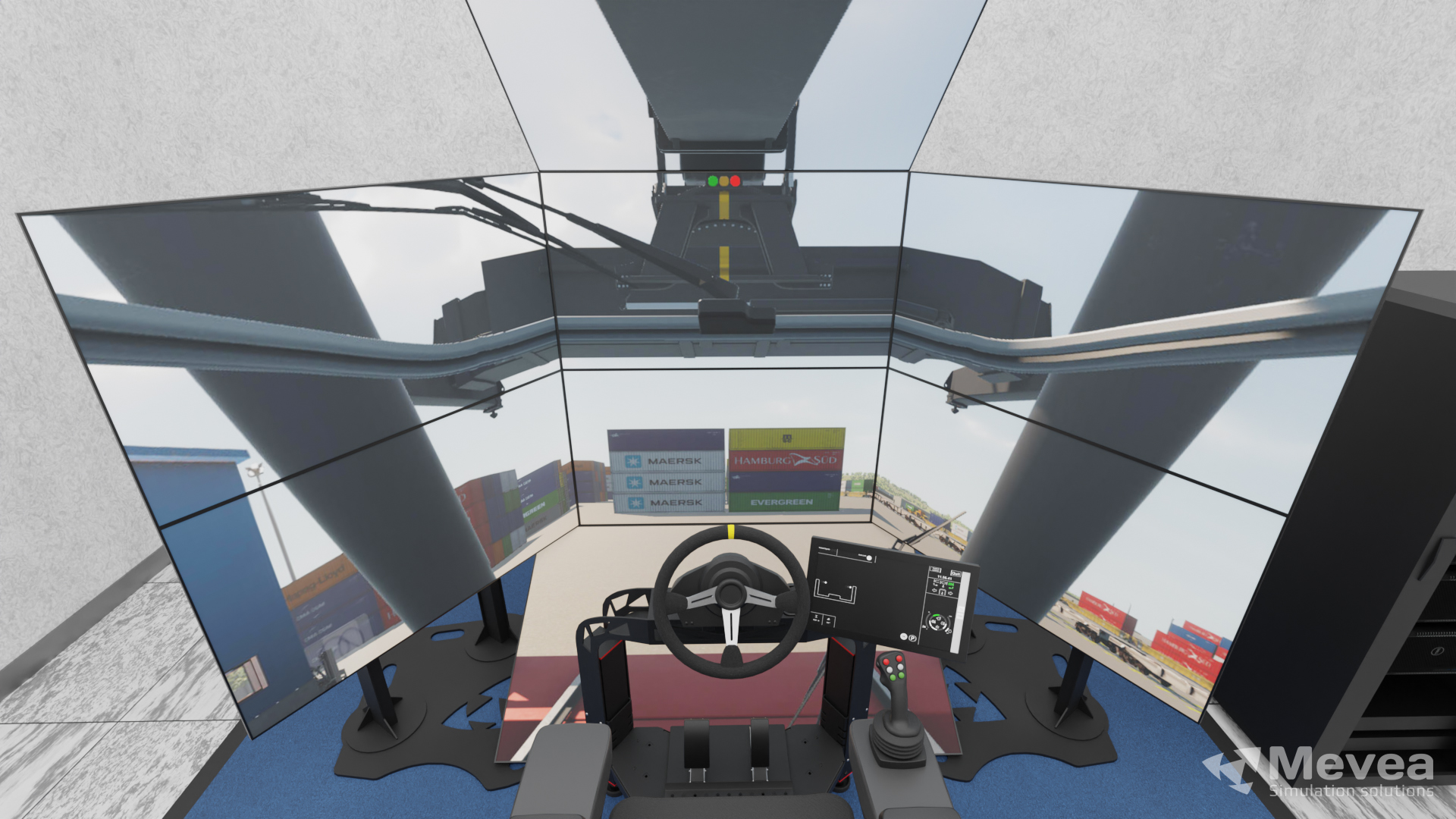

Mevea Pro Mobile, 8 displays
Mevea Pro Mobile, 8 displays
Features
Visualisation displays: 3-10 x 55-70”
15” touch screens for Human Machine Interface (HMI)/ Vehicle Mounted Terminal (VMT)
15” Virtual soft consoles
- 24” CCTV view screen
Audio system and operator-instructor communication devices
High-end performance computers and graphics cards
Optional Mixed Reality (XR) headset
Operator Camera
Instructor station
Operator controls can be customized for each platform based on the machine models, including:
- Real operator seat with adjustments, seat belt and rotator
- Changeable real machine main joysticks with common control interface
- Auxiliary joystick
- Operator consoles in soft console touch screens
- Operator HMI in Touch screen
- Pedals of different kind (one way, two-way, micro switch)
- Steering wheel
- Direction change switch
- Radiophone for Instructor communication
- Emergency stop for motion platform
- Configurable motion platform to be used with wide variety machines
- 3DOF motion platform simulating machine movements
- Motion data from multibody dynamics machine model
- Motion platform generates real motion based on the motion data via electrical actuators
- 3m x 3m
*)Final measurements are dependant on required equipment
- Mevea Cranes
- Mevea Port Mobile equipment
- Mevea Construction equipment
