Straddle Carrier
Straddle Carrier Training Package
The Mevea Solution is tailored for container terminals conducting stacking and transport operations with a single machine. It supports both new and experienced operators by providing real-life scenarios, measurable performance metrics, and hands-on practice, ensuring faster learning and higher operational safety.

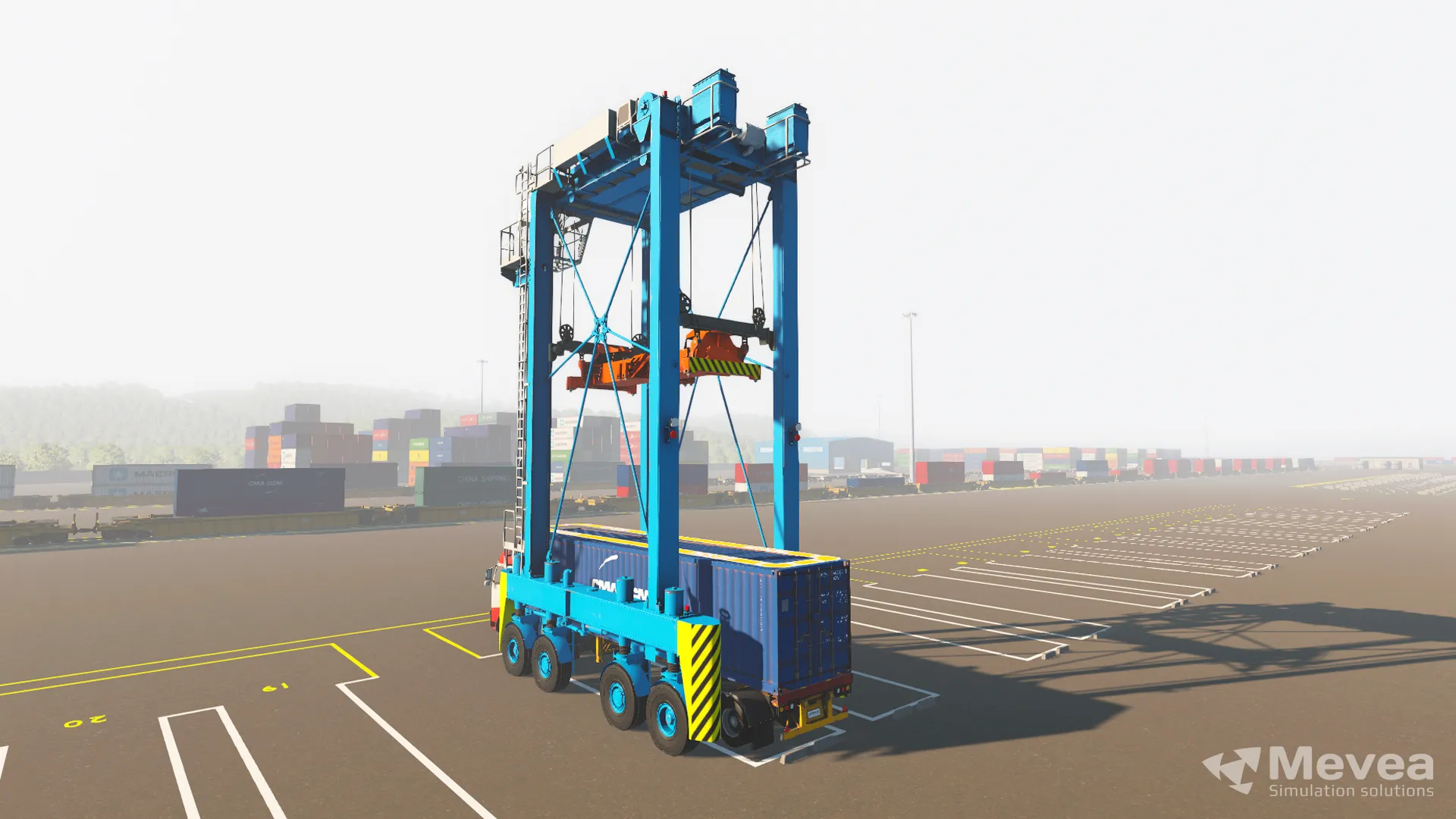

Mevea Straddle Carrier is a Digital Twin of the real machine, which is modelled using state of the art physics-based methods that enable accurate real-time simulation. The simulator operates in a dedicated port terminal environment and supports handling of 20-, 40-, and 45-foot containers using single or twin-lift spreaders. Training exercises cover container movement between stacks, STS cranes, and parked trucks, providing a comprehensive, realistic, and risk-free learning experience.
Key Benefits
- Train your operators your way with highly customizable training solutions.
- Faster transition to live equipment operation than with any other port equipment training simulator on the market, ensuring higher productivity and safety from the very first day.
- Uniquely authentic operator console replication using Mevea’s physics-based Digital Twin technology for highly realistic, true-to-life training, with instant reconfiguration to match any control layout.
- Reduced training energy consumption through efficient simulator-based port equipment operator training.
- Higher terminal throughput and profitability by keeping container handling equipment available for revenue-generating work instead of training.
- Alignment with modern port standards to support your long-term operational goals and compliance requirements.
Images
Simulation Details
Realistic virtual environment customization.
Ability to choose truck parking position: parallel or 45°.
Diesel engine and hydraulic steering.
Clears 3+1 container height.
Pre-set hoist heights for faster container stacking and safer operations.
Spreader side shift and gantry inching for more precise positioning.
Productivity, operation accuracy and collision measurements.
- Maximum speed: 24 km/h
- Outer turning radius: 9.3 m
- Wheelbase at inner axles: 3.7 m
- Wheelbase at outer axles: 4.87 m
- Hoist maximum height: 12 m
- Maximum lifting capacity: 60 tn
- Hoisting speed (loaded/unloaded): 20/24 m/min
- Spreader sizes: 20 ft, 40 ft, twin 20 ft
- Spreader sideshift and skew: ±300 mm or ±6°
- Standard 20 ft and 40 ft containers in single and twin configurations.
Three key points in the terminal:

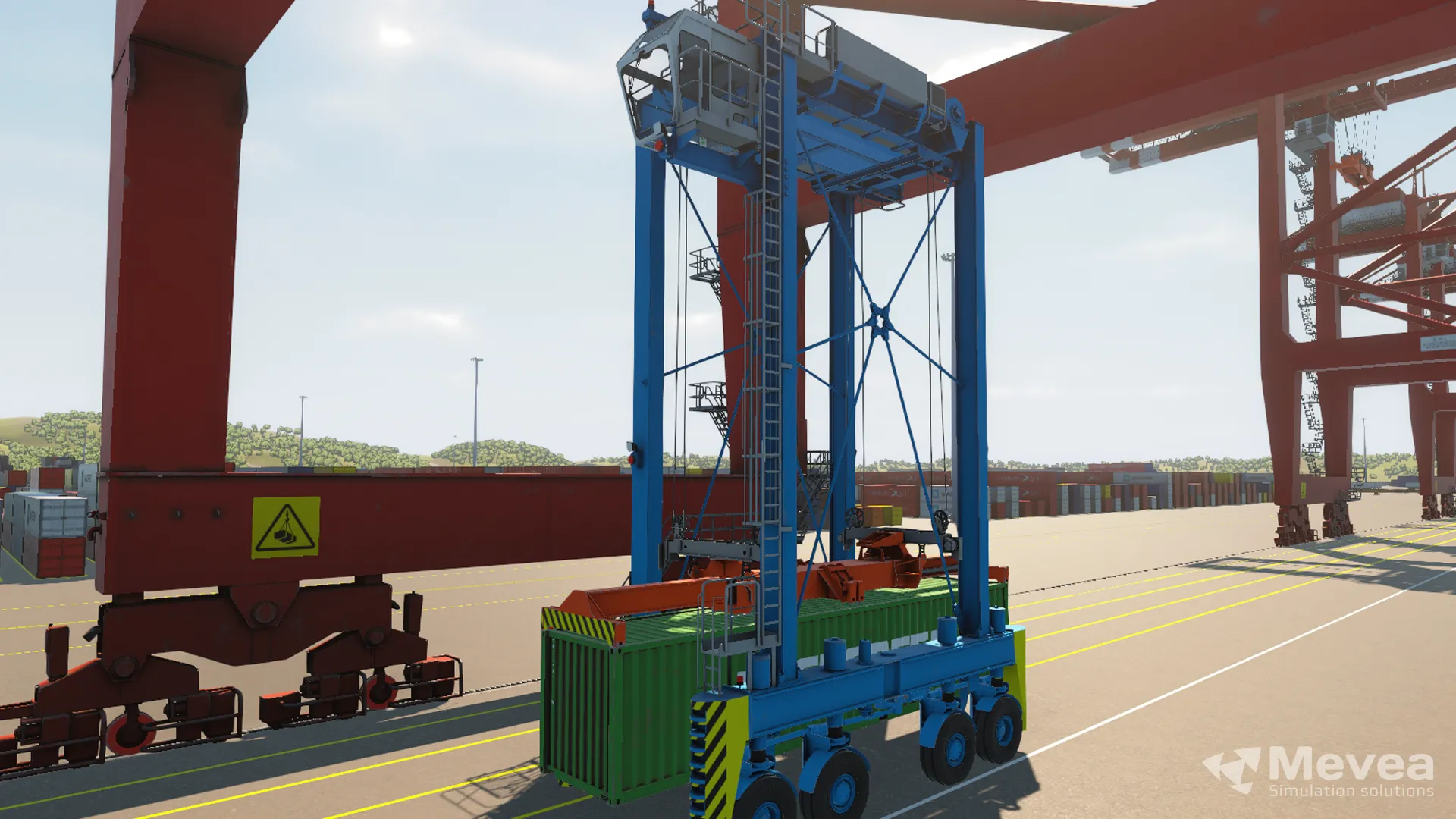

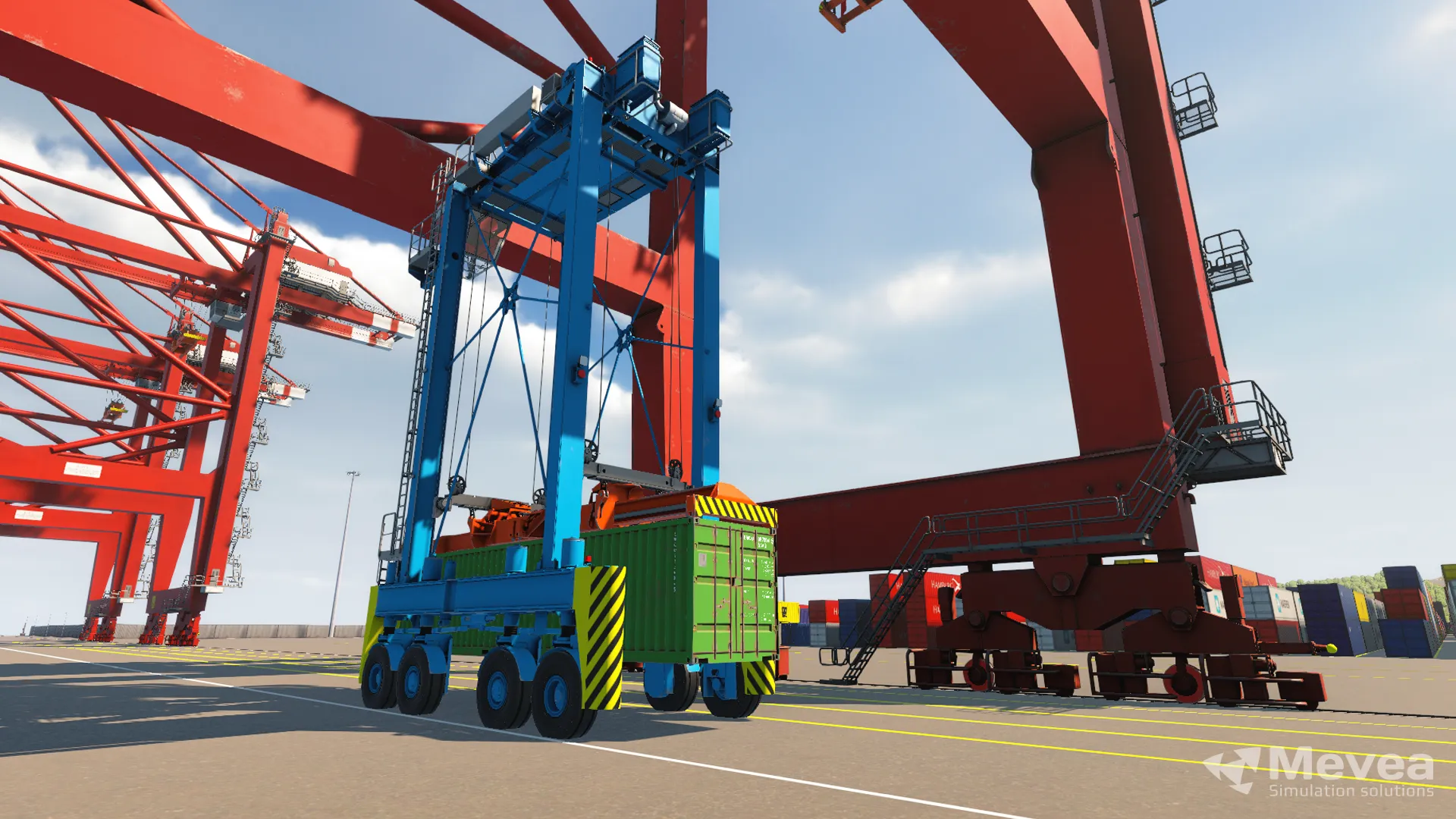

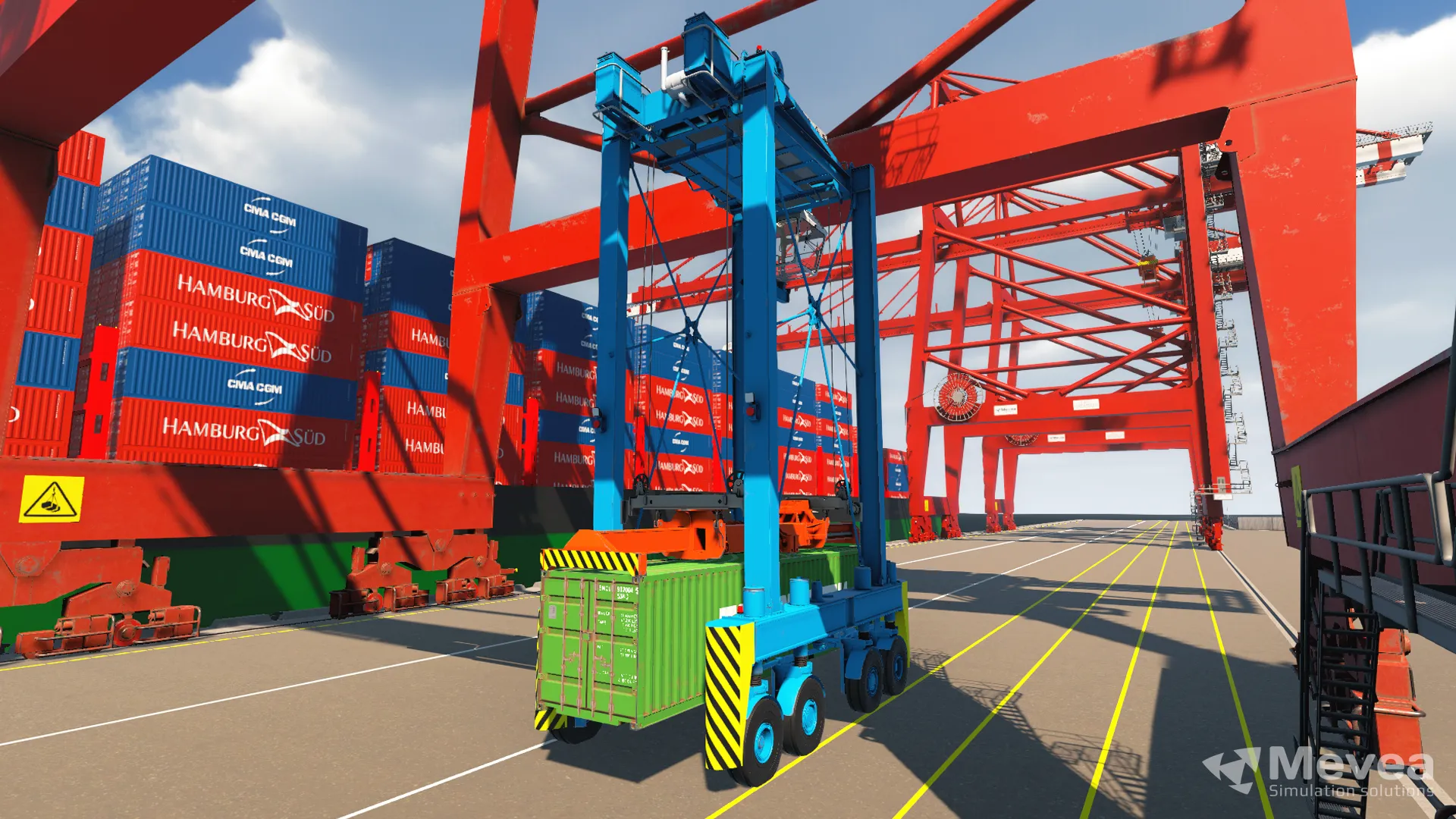

- Under STS.
- Inside the stack.

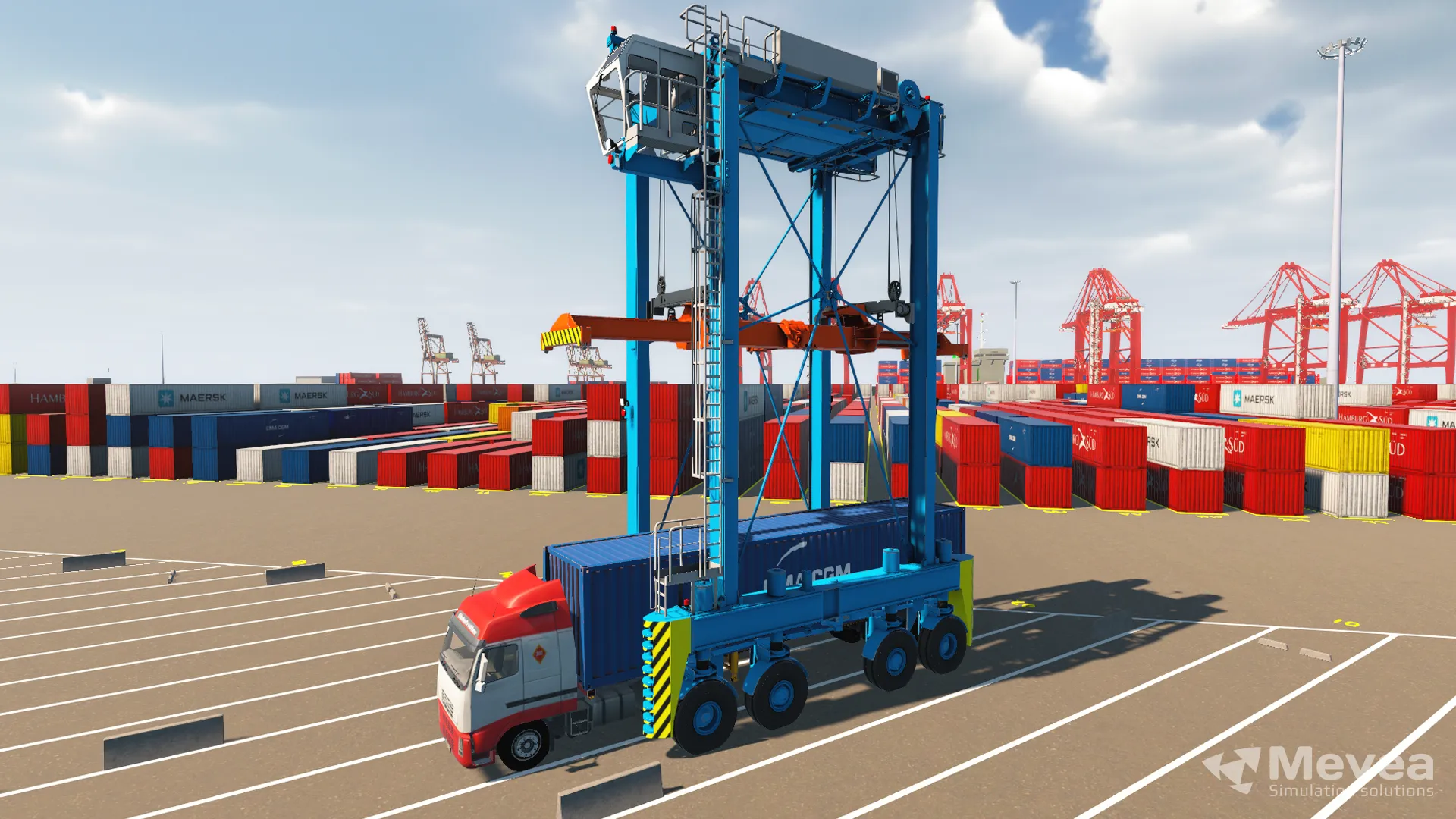

- Truck parking area with option to choose parallel or 45° truck parking position.
- Joystick with integrated controls for hoist, sideshift, gantry inch, and container locking — designed to replicate real operator movements.
- Steering wheel with turn signals and gear-shifter levers for authentic driving experience.
- Throttle and brake pedals for precise machine control during training scenarios.
- Side console with machine and CCTV control panels for comprehensive operational awareness.
- HMI (Human Machine Interface): realistic crane operation interface to guide operator decision-making.
- VMT (Vehicle-Mounted Terminal): digital job display for accurate task tracking and workflow management.

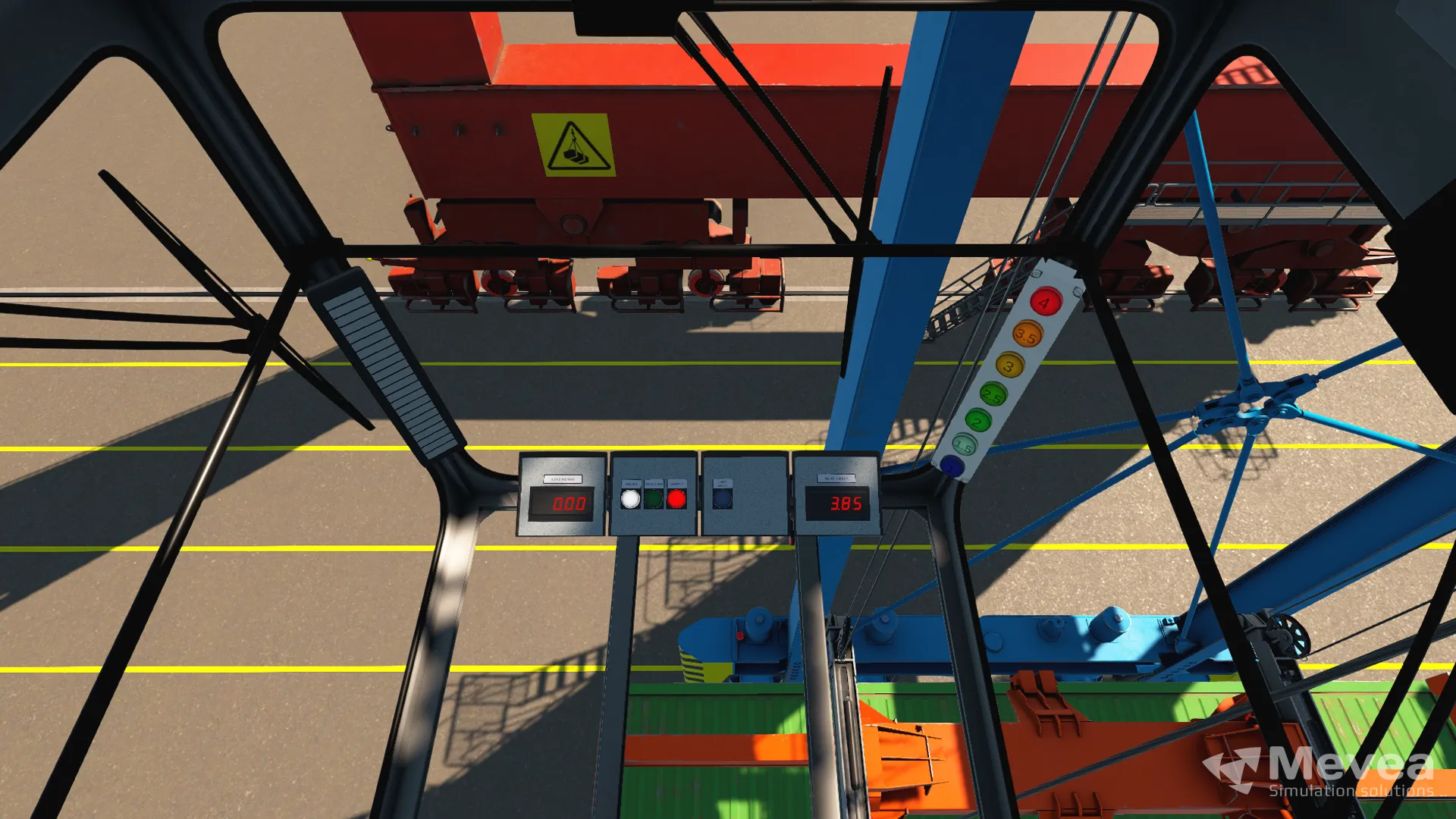

- Smartbar and cabin meters: visual status lights and indicators to mirror real machine feedback.

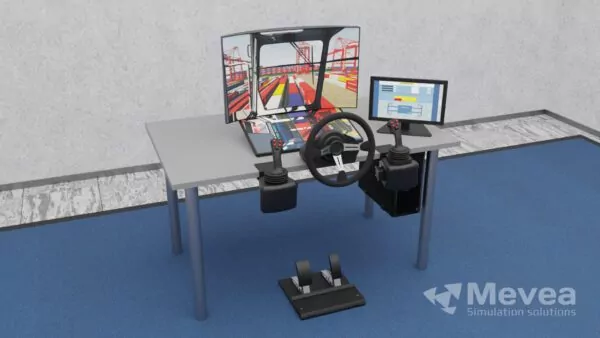

Supported Mevea Simulator Platforms
Mevea Straddle Carrier Training Package can be installed on the following Mevea Simulator platforms.
All Simulator Platforms include the Mevea Instructor Station.
